PBM Red Light Therapy Chamber
Full-body light therapy — up to 43,200 LEDs, five wavelengths, one chamber.
Our PBM Light Chamber delivers your choice of 5 LED wavelengths, including Blue Light (450 nm), Red Light (633 & 660 nm), and Near-Infrared Light (810, 850 & 940 nm) in a single full-body chamber. Selectable pulse frequencies let you target specific effects.
Six models available for home, studio, clinic, and professional use.
Clinically Proven Benefits
Full-body PBM therapy offers a wide range of wellness benefits, backed by research.
Reduce Inflammation
Near-infrared light reduces inflammatory markers — easing joint pain, sore muscles, arthritis, autoimmune conditions, and spinal cord injuries.
Reduce Recovery Time
Accelerates muscle repair after fatigue and injury by targeting the mitochondria-rich cells most responsive to PBM light.
Reduce Pain
Near-infrared penetrates 1"–2" below the skin to relieve neuropathic pain, joint stiffness, and muscle spasms.
Maintain Skin Health
Red-light wavelengths stimulate collagen production for firmer skin, fewer wrinkles, and faster wound healing.
Improve Circulation
Increases blood vessel diameter and protects red blood cells against oxidative stress.
Stimulate Hair Growth
Red light between 630–670 nm shifts hair follicles into the active-growth (anagen) phase.
Boost Fertility
Red and near-infrared wavelengths support testosterone production and have shown improved egg quality with regular use.
Regulate Circadian Rhythm
Blue light at 450 nm helps regulate sleep-wake cycles, alertness, memory, and mood.
Oral Health
LED light therapy has supported sensitive teeth, gum health, and non-UV teeth whitening for decades.
The science behind the light
About 43% of the sun's energy is visible light (400–700 nm) and roughly 49% is invisible near-infrared. Our chamber concentrates the most beneficial wavelengths of that spectrum into a single controlled environment.
Near-infrared light is invisible but powerful, penetrating up to 2 inches deep — more than blue or red light, which reach about 1 inch below the skin.
Our top model runs on 6,000 watts — among the most powerful in the PBM industry — supported by over 5,000 research studies on Low Level Laser and LED and PBM therapy indexed on the National Library of Medicine (NCBI).
Choose Your Model
Six chamber and panel configurations — from a single upright panel to full 360° professional beds.
360° Full-Body Chambers

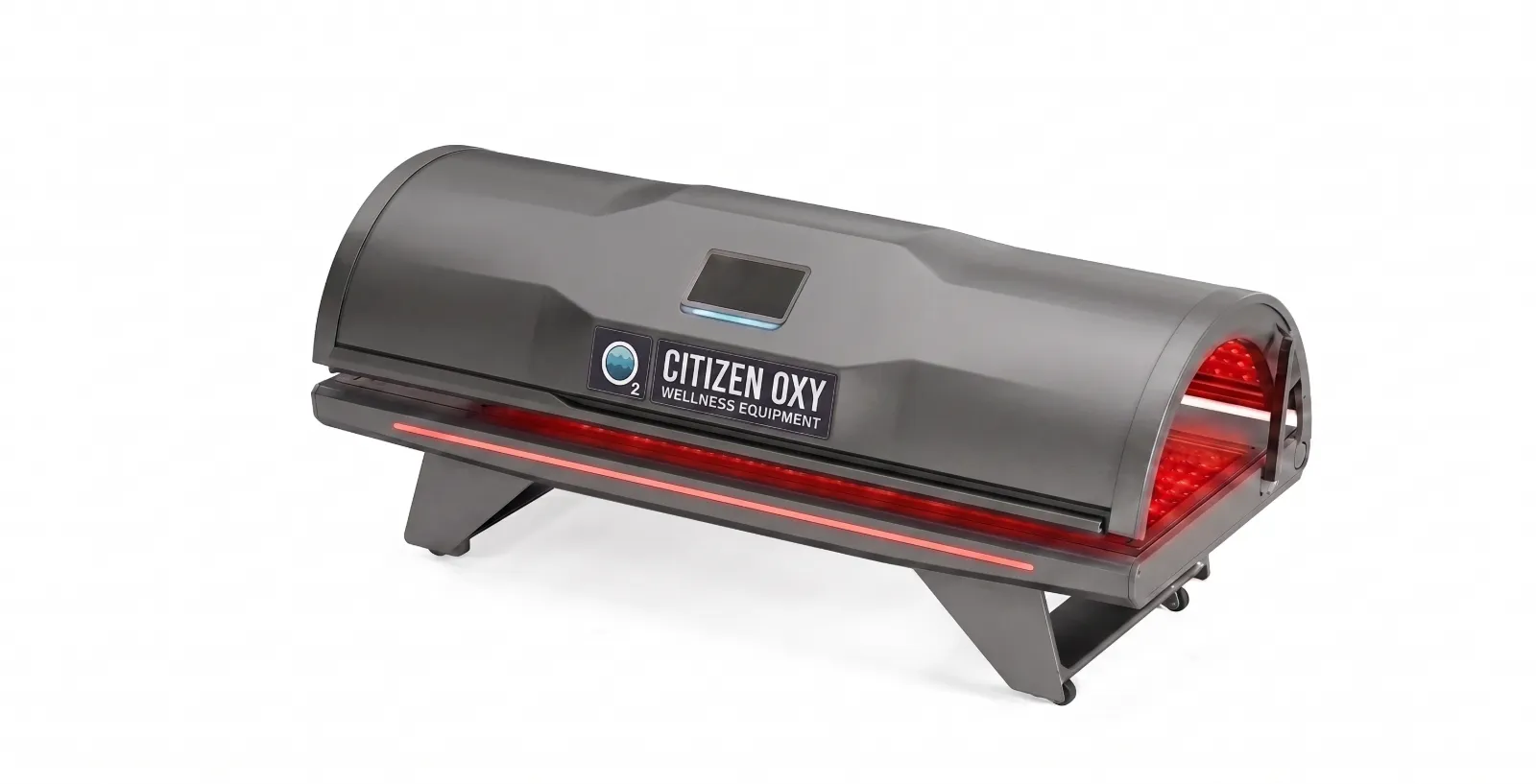

CO-1400
Home & Personal Use
- LEDs 13,680 pcs (Taiwan)
- Power 1,280 W
- Current 15 Amp (120 V)
- Exterior White or silver
- Wavelengths 633, 660, 810, 850 nm with other options
- Pulsing 1–10,000 Hz
- Size 199 × 86 × 89 cm (79 × 34 × 36 in.)
- Weight 130 kg (287 lbs.)

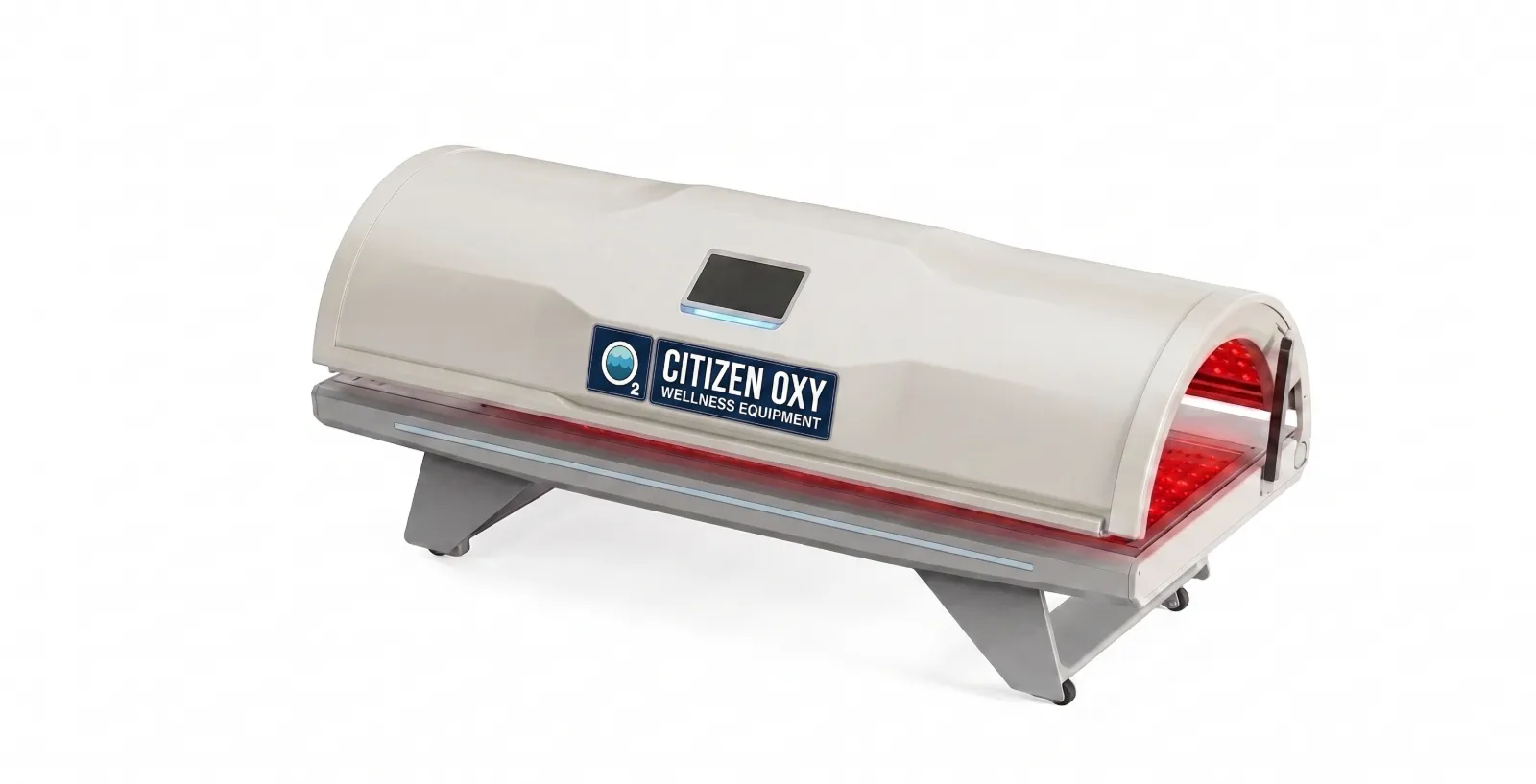

CO-2850
Studio & Small Clinic
- LEDs 27,360 pcs (Taiwan Epistar Diodes)
- Power 3,000 W
- Current 15 Amp (240 V)
- Exterior White and black
- Wavelengths 633, 660, 810, 850 nm
- Pulsing 1–10,000 Hz
- Exposure 360° full body
- LED rating 100,000 hours
- Size 1987 × 860 × 890 mm (78 × 34 × 35 in.)
- Control Wireless pad, multiple connections

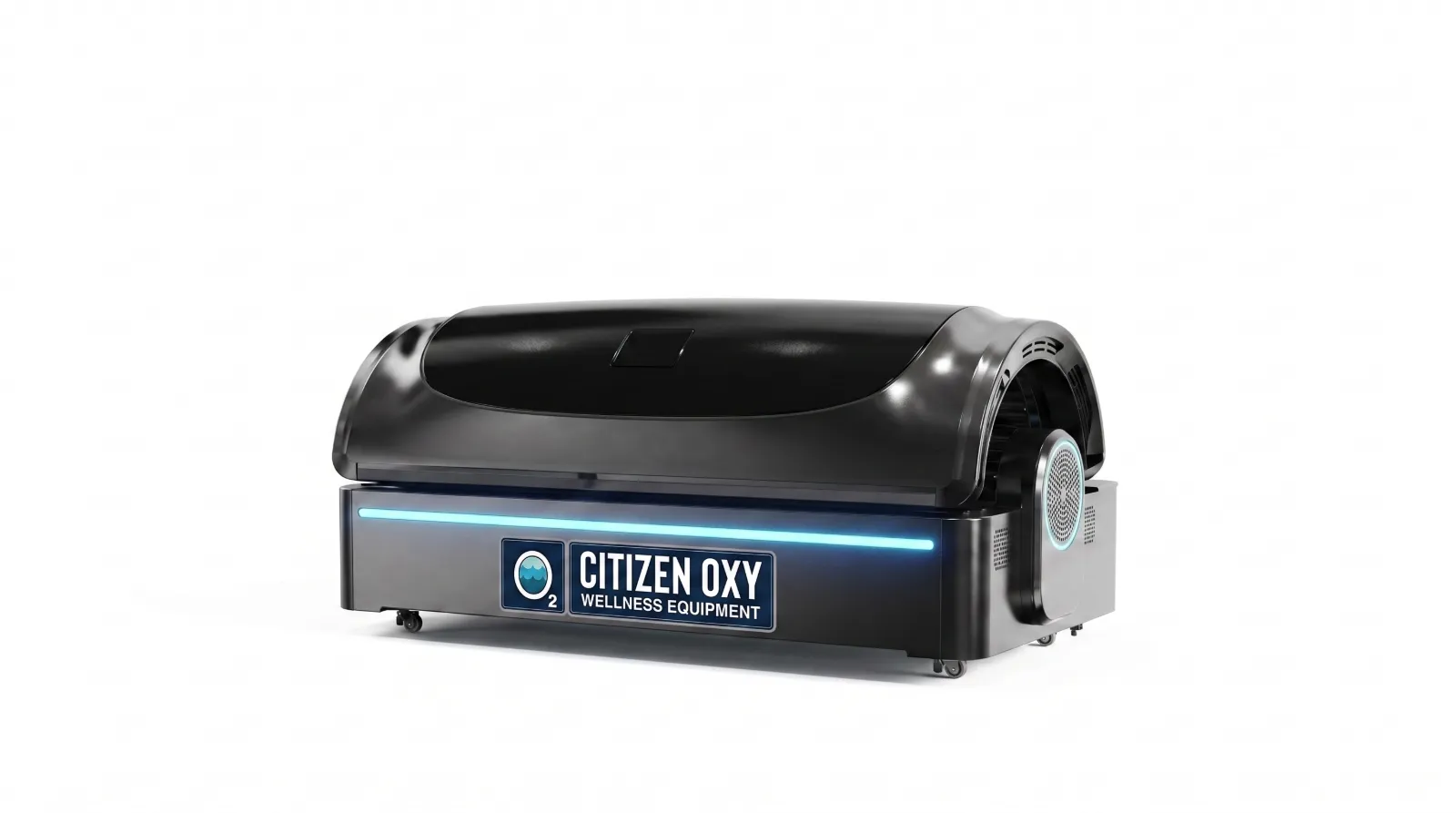

CO-3300
Clinic & Small Studio
- LEDs 32,400 pcs (Taiwan)
- Power 4,500 W
- Current 20 Amp (240 V)
- Exterior White or black
- Wavelengths 633, 660, 810, 850, 940 nm with other options
- Pulsing 1–10,000 Hz
- Size 230 × 126 × 113 cm (91 × 50 × 45 in.)
- Weight 350 kg (772 lbs.)

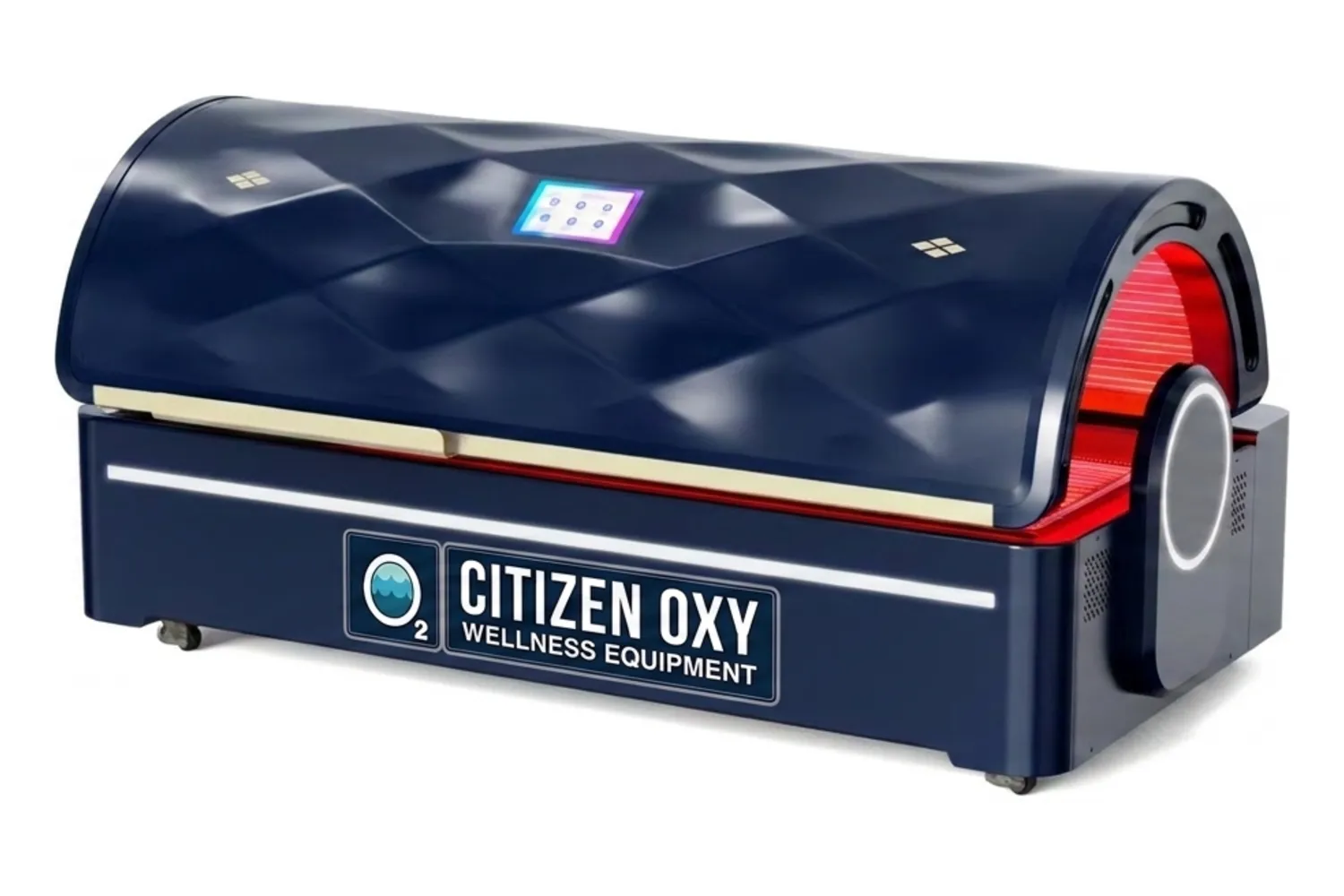

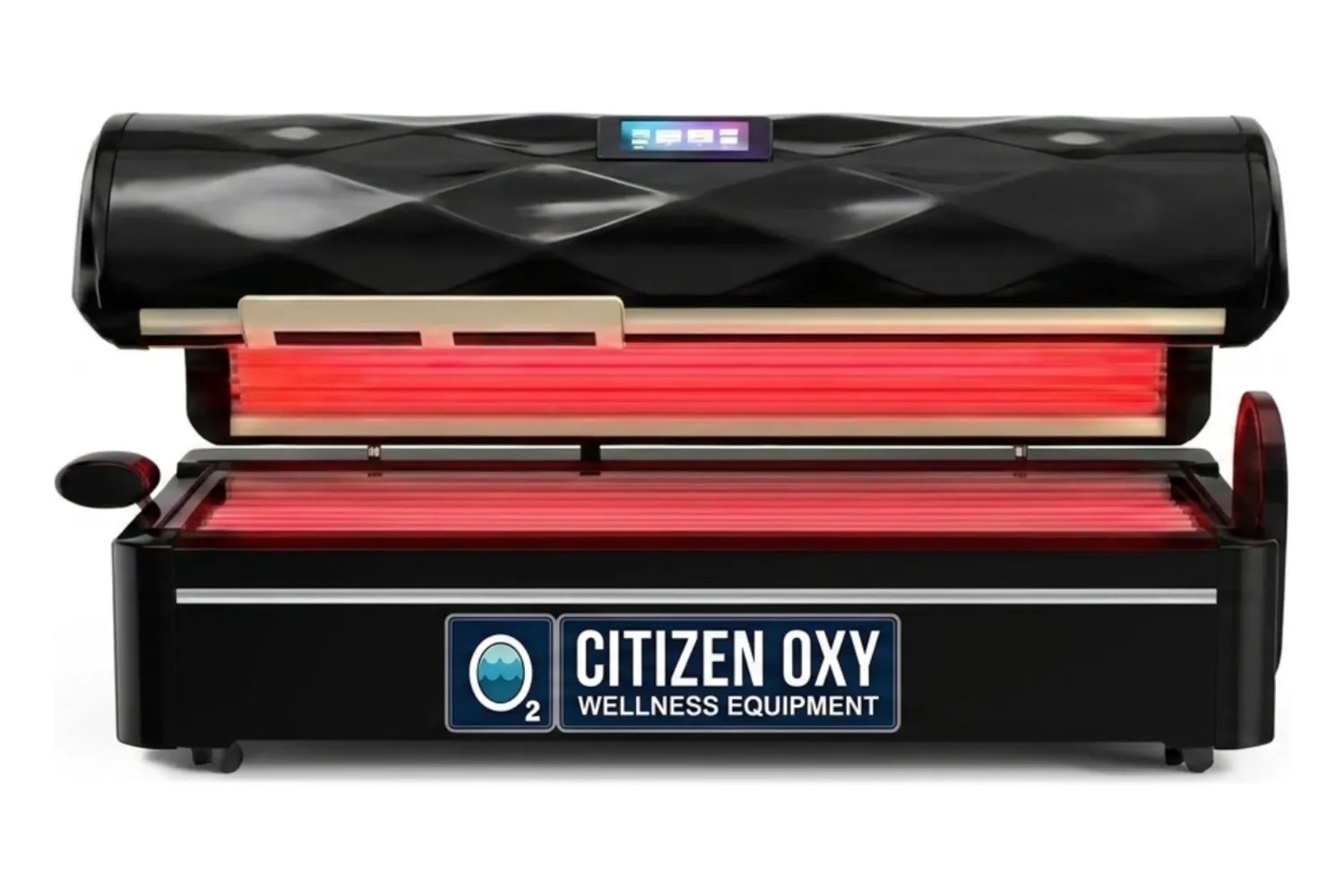

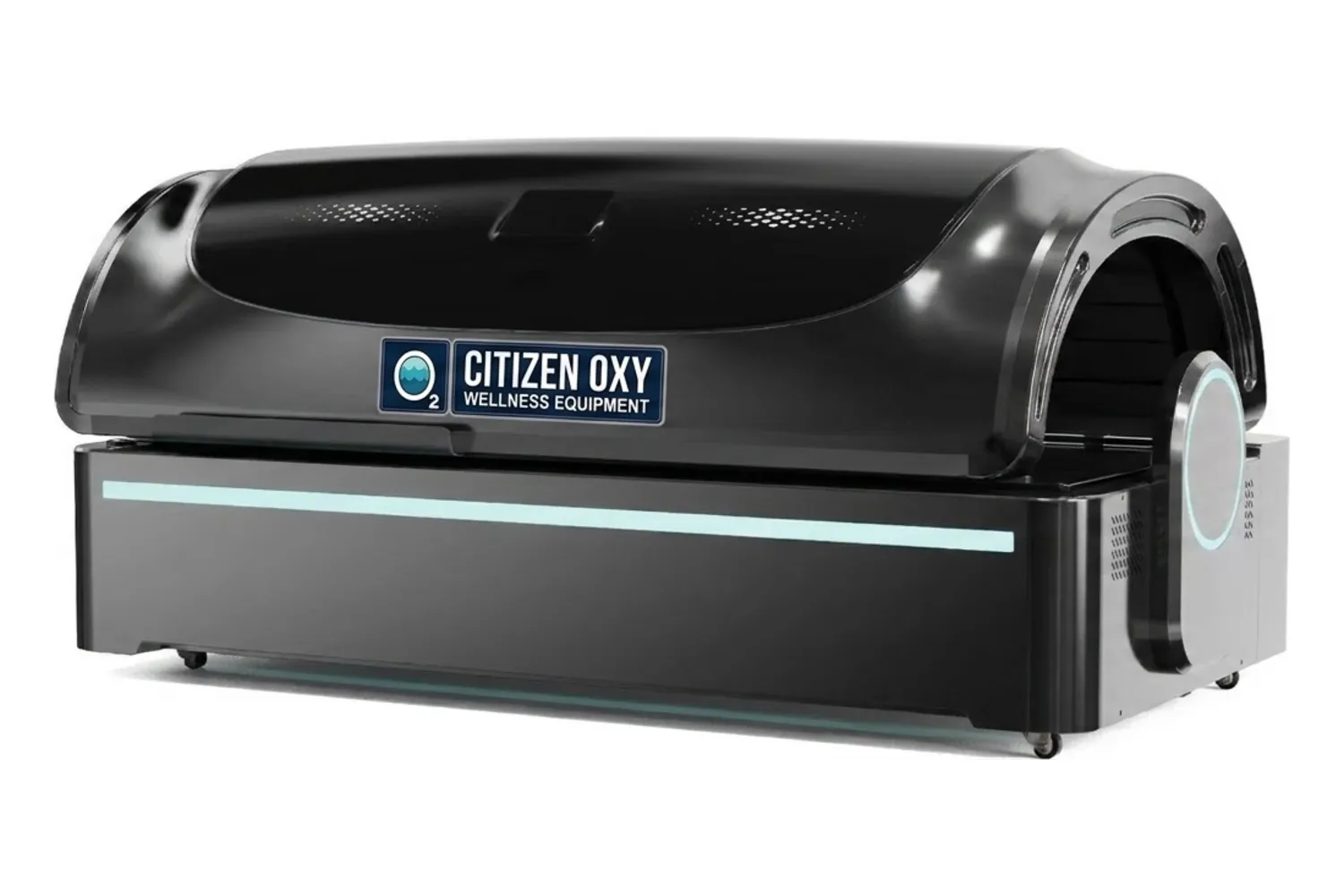

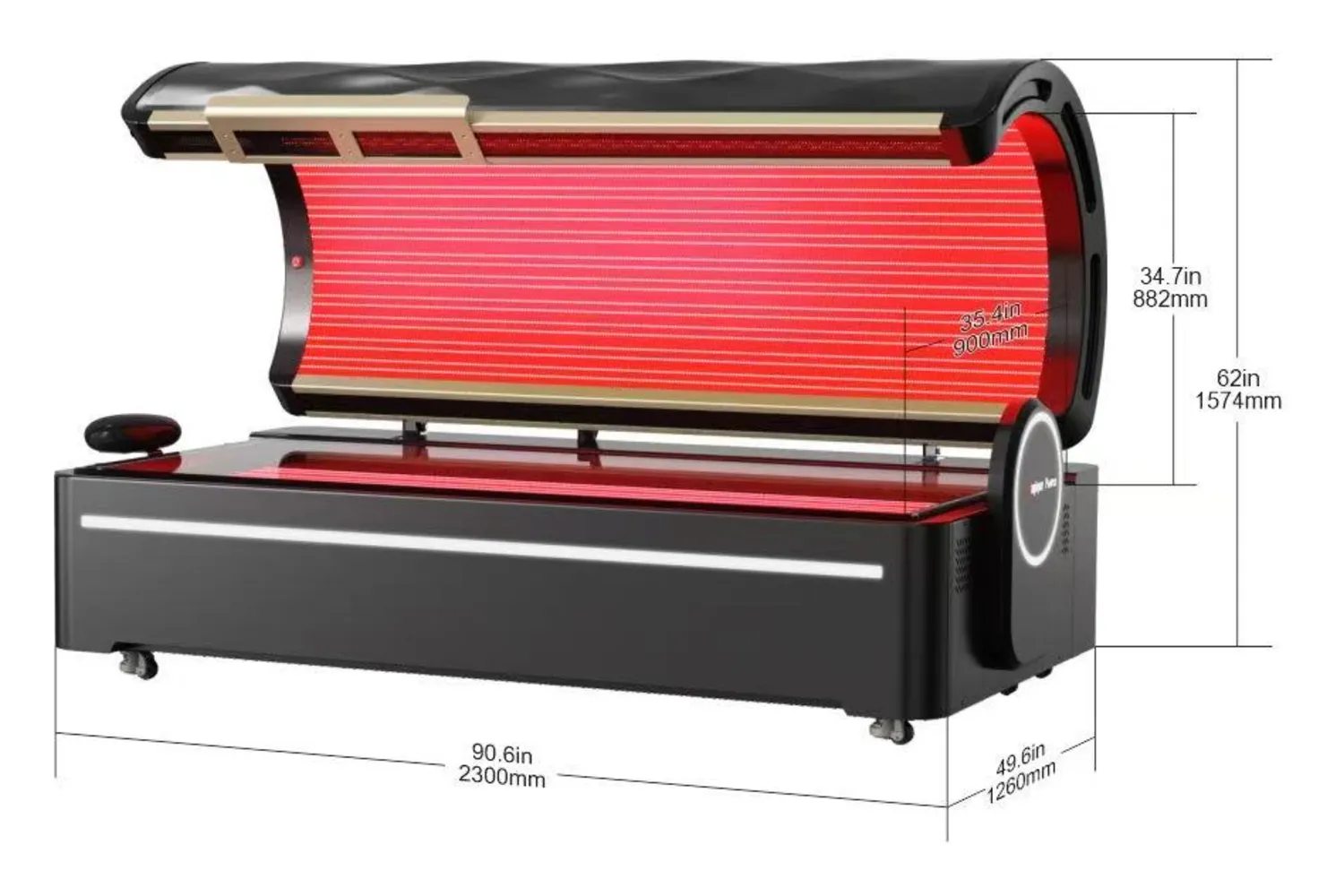

CO-4400
Professional Wellness Center
- LEDs 43,200 pcs (Taiwan)
- Power 6,000 W
- Current 35 Amp (240 V)
- Exterior White, blue or black
- Wavelengths 633, 660, 810, 850, 940 nm with other options
- Pulsing 1–10,000 Hz

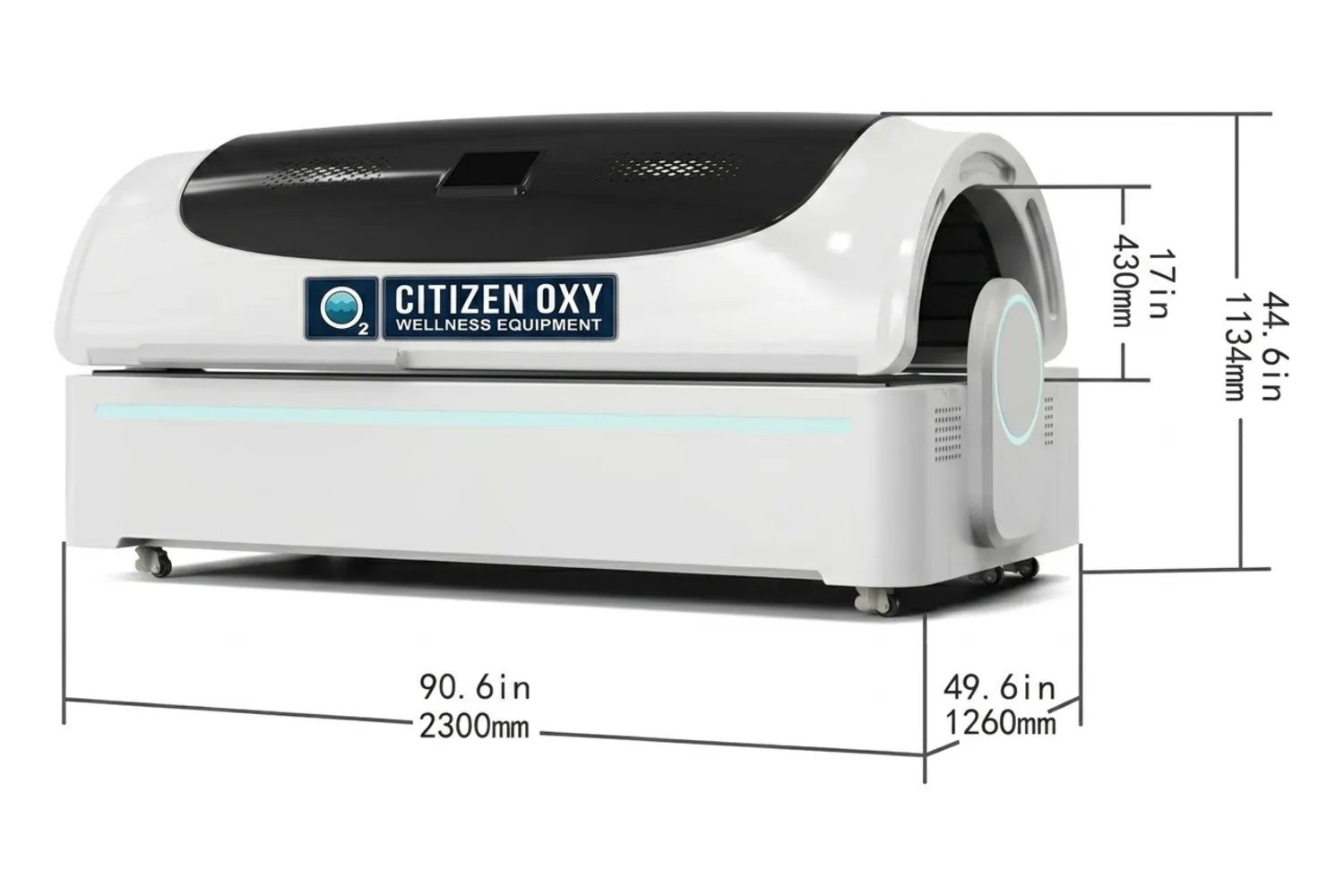

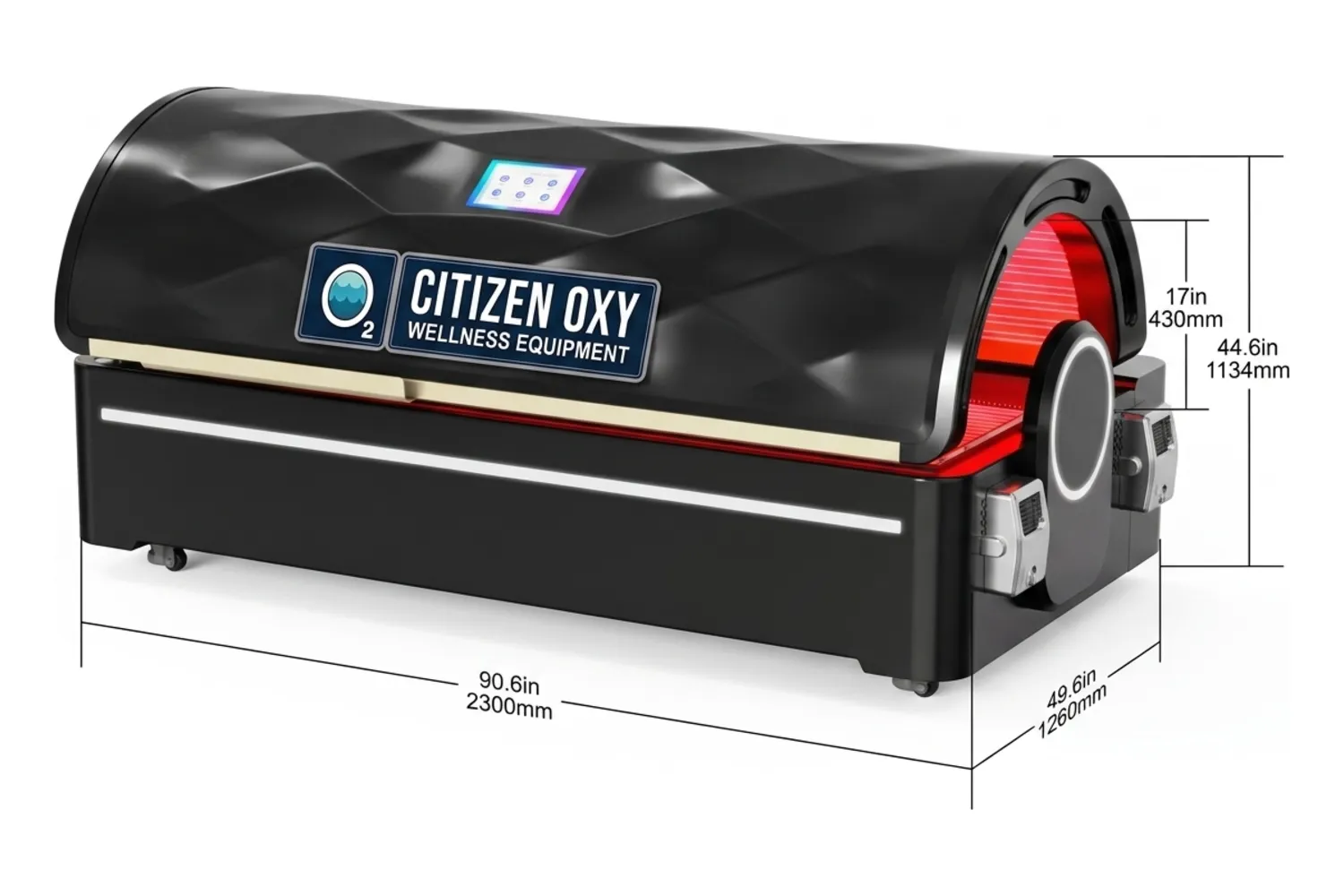

- Size 230 × 126 × 113 cm (91 × 50 × 45 in.)
- Weight 400 kg (882 lbs.)
Panel & Bed Systems

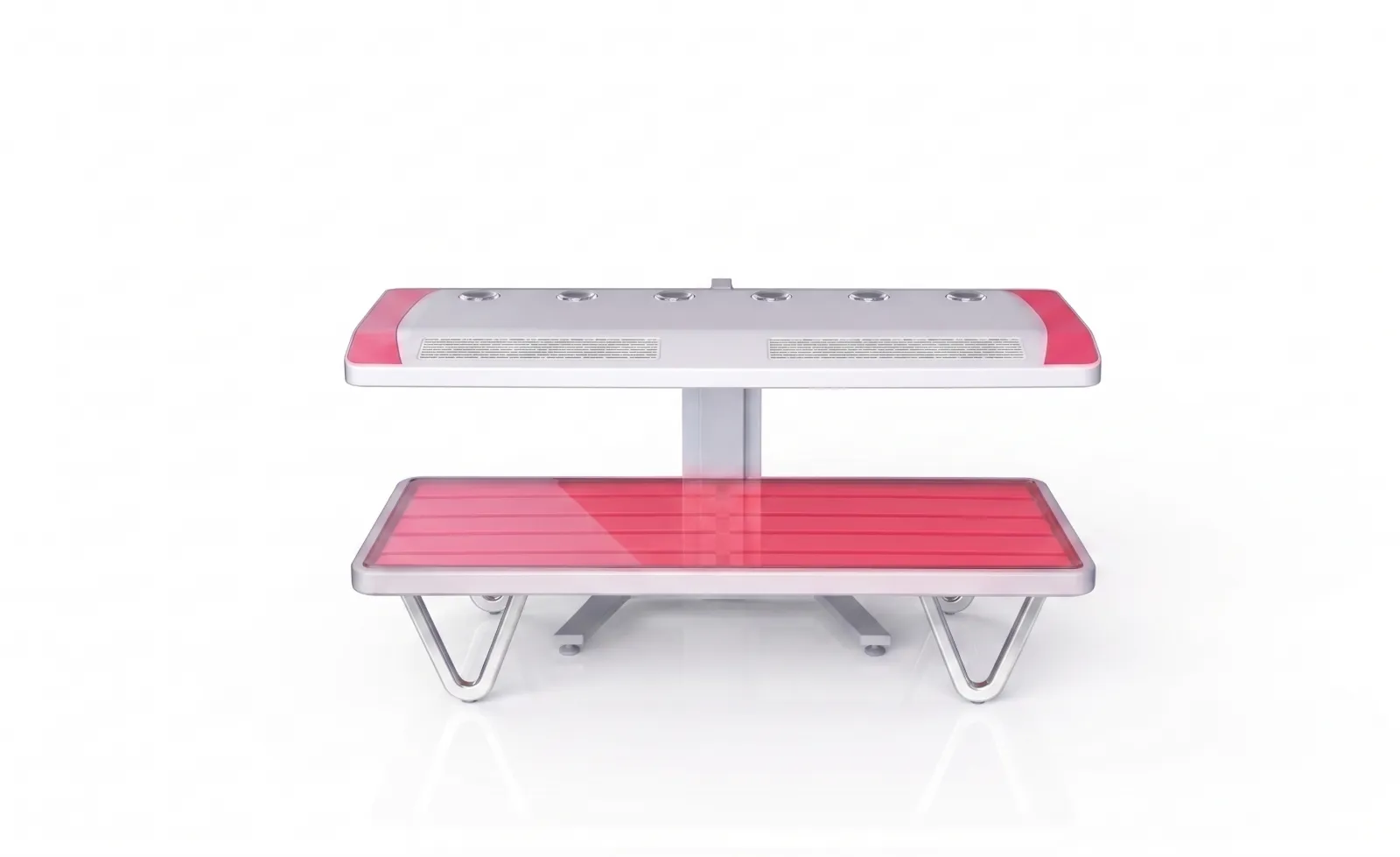

CO-3325
Panel + Bed System
- LEDs Panel 1,408 pcs · Bed 1,584 pcs
- Power 2,700 W (panel 1,250 W, bed 1,450 W)
- Current 15 Amp (240 V) or 2 circuits, 120V each with 15A breakers
- Exterior White or black
- Wavelengths Red 633, 660 nm · NIR 850, 940 nm
- Pulsing 1–10,000 Hz
- Exposure angle 120°
- Modes 5 preset + 1 custom
- Cooling Panel 6 fans · Bed 8 fans
- Panel size 1919 × 1045 × 1065 mm (75.5 × 41 × 42 in.), 125 kg
- Bed size 2114 × 816 × 478 mm (83 × 32 × 19 in.), 85 kg
- LED rating 50,000 hours

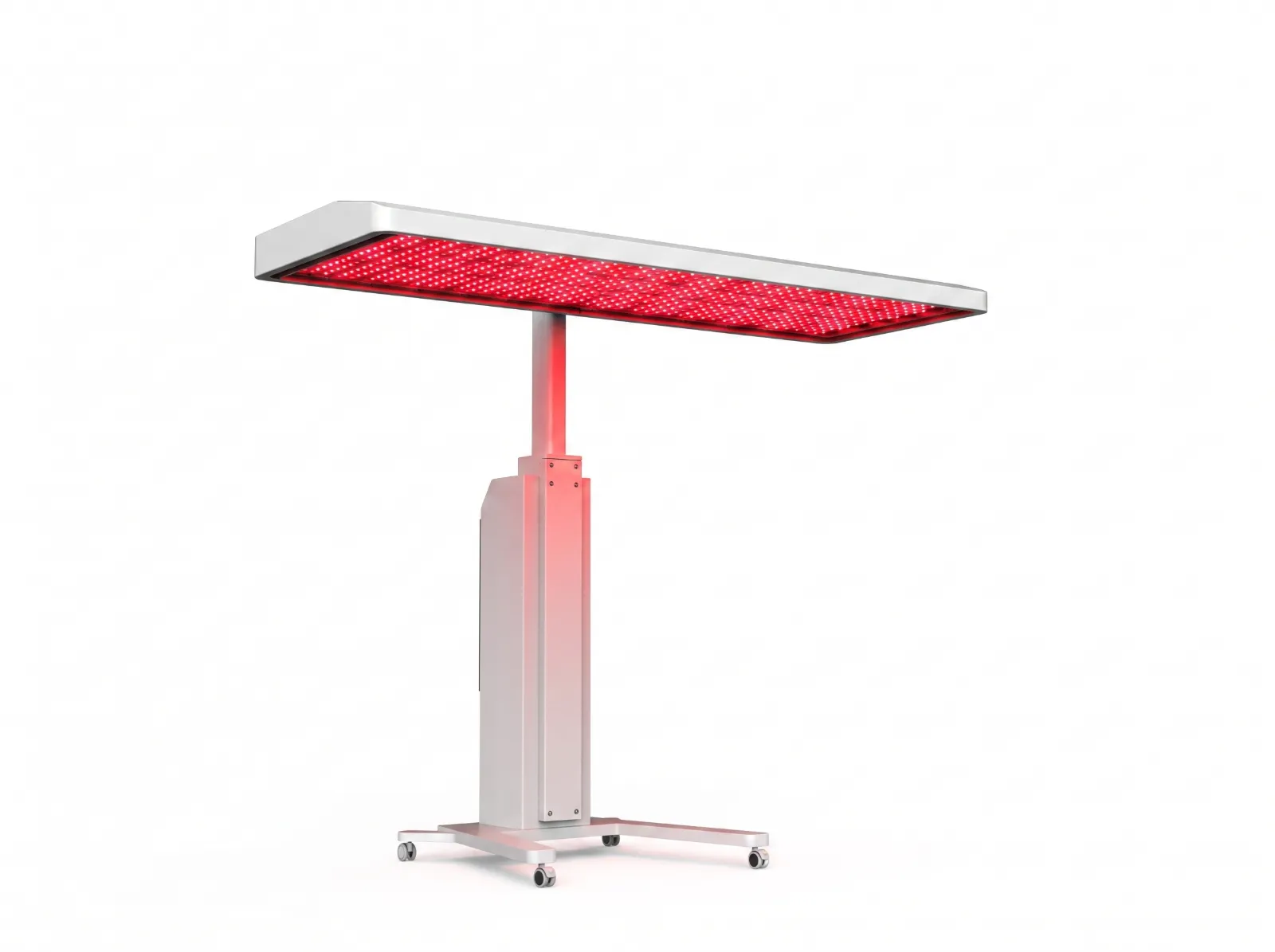

CO-3325D
Standalone Panel
- LEDs 1,408 pcs (panel)
- Power 1,250 W
- Current 15 Amp (120 V)
- Exterior White or grey
- Wavelengths Red 633, 660 nm · NIR 850, 940 nm
- Pulsing 1–10,000 Hz
- Exposure angle 120°
- Modes 5 preset + 1 custom
- Cooling 6 panel fans
- Panel size 1919 × 1045 × 1065 mm (75.5 × 41 × 42 in.), 125 kg
- LED rating 50,000 hours
The 360° chambers feature wireless pad control, external control, full-body exposure, and Taiwan Epistar Diode light sources with a 100,000-hour lifespan. Every unit ships with five preset working modes — muscle recovery, weight loss, collagen boost, pain relief and intelligent mode — plus five interface languages, and passes electrical leakage, resistance calibration, hipot, temperature, EMF and irradiance testing before shipment. The CO-1400 and CO-2850 share the same exterior shell; the difference is inside, where the CO-2850 carries 27,360 LEDs against the CO-1400's 13,680.
What to Ask Before Buying a PBM Device
Shopping for a Photobiomodulation device can be confusing — and intentionally made overly complicated by many sellers. Buying decisions shouldn't require being a rocket scientist. Here's what to ask before you decide.
- How good is the overall build quality of the device? What's the manufacturer's history, the warranty terms, and where are the LED bulb strips manufactured?
- Do you have the room and door widths and heights to bring the device in and install it without disassembly?
- How many LEDs are in the device, and what's its total electrical wattage? Sufficient light power to the skin is critical to receiving the desired effects.
- How close will the bulbs be to your body? Proximity to the skin matters — light power diminishes over distance.
- How many different wavelengths are available, and what are they? Different wavelengths penetrate to different depths of the body.
- Does the device have easy-to-use intensity and pulsing/frequency controls, and what are their ranges? Intensity affects heat and penetration; frequency affects the benefits to different cell types.
- Does the seller provide after-sale service?
- How do the light controls work, and are they easy to adjust and use?
- How difficult is the device to get into or out of?
- Does the device require a 120V or 240V circuit, and what breaker size (15–35 amps) is required?
- Is the purchase price the final total, or are there add-on costs you don't expect?
PBM Light Chamber Downloads
The full 2026 product catalogue and our therapy and prescription reference guide.
Frequently Asked Questions
How deep does the light penetrate?
Near-infrared light is invisible but penetrates up to 2 inches into the body. Blue and red light reach about 1 inch below the skin. Our chambers combine both so a single session covers surface and deeper tissue.
Do I need special electrical wiring?
The CO-1400 and CO-3325D run on a 120V circuit with a 15 amp breaker. The CO-2850, CO-3300 and CO-3325 need 240V at 15–20 amps, and the CO-4400 needs 240V at 35 amps. The CO-3325 can alternatively run on two 120V circuits with 15A breakers.
What is the warranty?
Two years on the shell and components, and five years on the LED bulbs. Technical support is included, and paid service is available after the warranty period at our standard rates.
Can I choose the wavelengths?
Yes. Each chamber carries five selectable wavelengths, and you can substitute options such as Blue 450 nm or Near-infrared 830 nm in place of the standard 633, 660, 810, 850 and 940 nm set.
Which model should I buy for home versus a clinic?
The CO-1400 suits home and personal use at 13,680 LEDs on a standard 120V circuit. The CO-2850 and CO-3300 fit studios and clinics, and the CO-4400 at 43,200 LEDs and 6,000 W is built for professional wellness centers running back-to-back sessions.
How long does delivery take?
Production and shipping typically run 30–60 days depending on the model. We confirm the expected timeline before you order, and curbside freight shipping in the continental USA is included.
